Terry Gaskin's MGB front suspension rework, May 20, 2000

Click on pictures for BIGGER pictures.
Contact Terry Gaskin for more information.

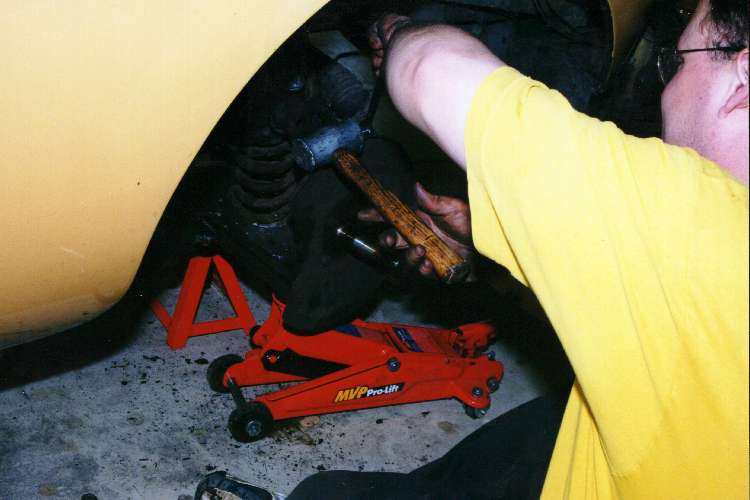

Hammering out the right upper trunnion bolt
Terry says "I got this one.

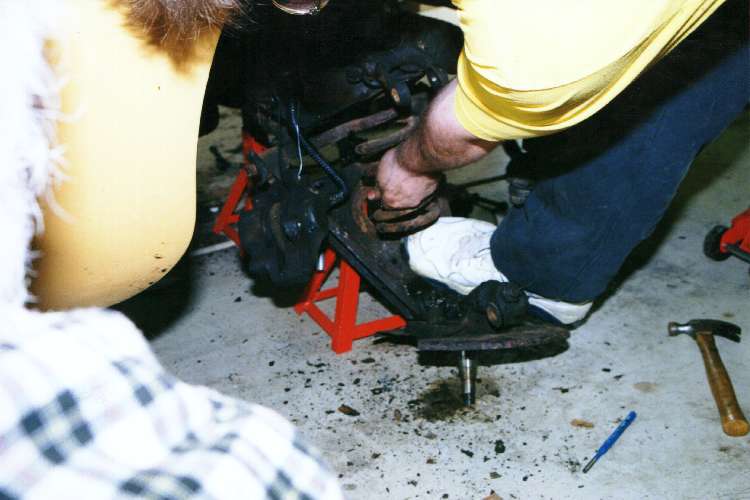

Gimme that Hammer!" 		Removing right side spring
A simple step on the spring pan,
and the spring lifts right out.

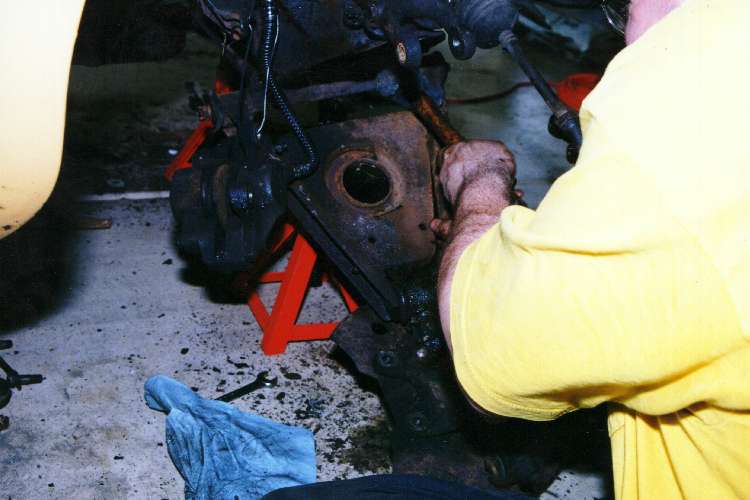

Hammering the front a-arm off
That BFH is the handiest tool around.

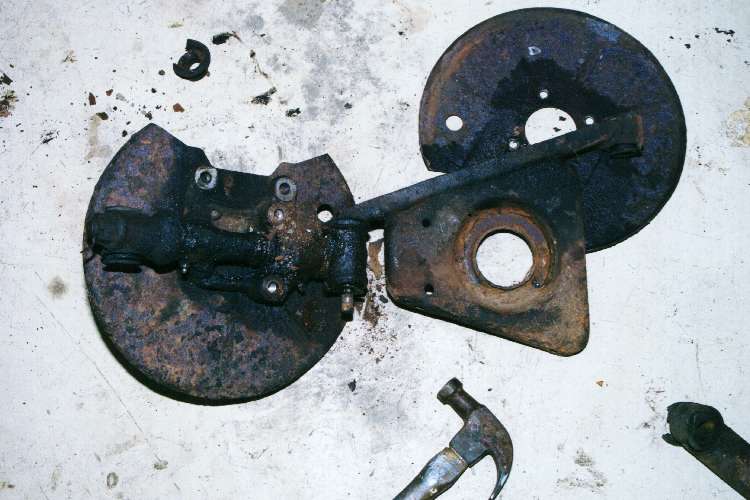

Could be even bigger sometimes. 		Right side left over junk parts
Getting to be a familiar sight,
complete with traditional stuck lower pivot bolt.

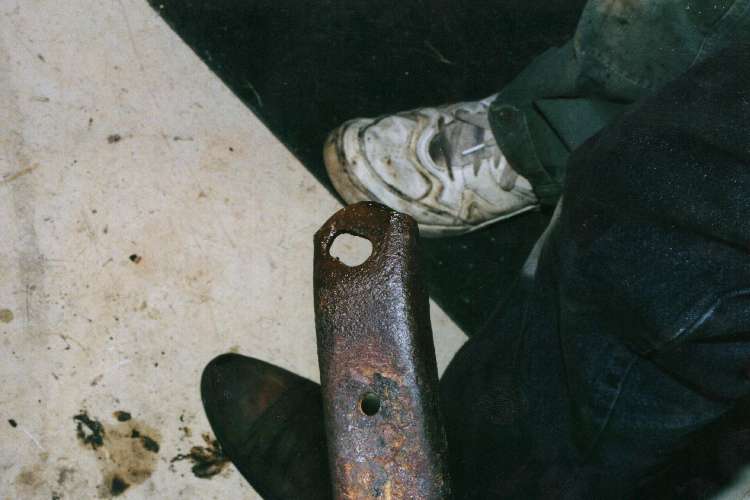

Worn hole in right side arm.
Same as the other side,

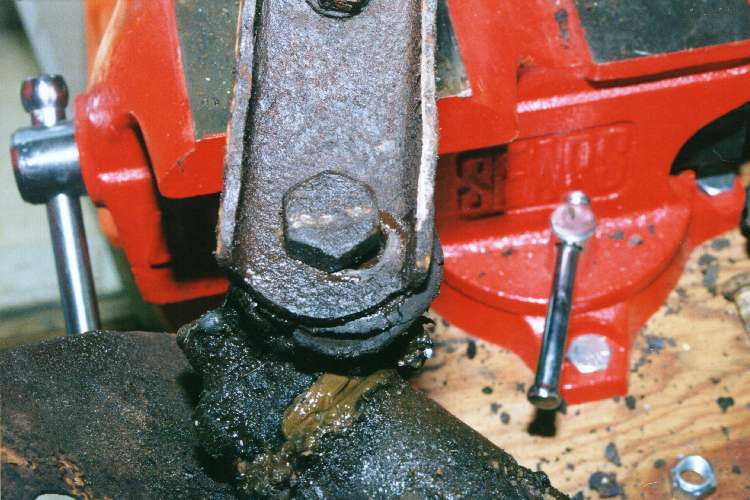

just faster getting it apart this time. 		Close up of bolt and worn a-arm
Wailing on this with the BFH wouldn't budge it.
So bad the bolt head was chewing on the arm.
